LITEN 1/2”OD 90° Silver-Plated Nitrided Union Elbow | High-Pressure Gas & Fluid Fitting 6000 PSI Certified Performance | 5-7 Day Fast Delivery | OEM Customization

LITEN 1/2”OD 90° Silver-Plated Nitrided Union Elbow | High-Pressure Gas & Fluid Fitting 6000 PSI Certified Performance | 5-7 Day Fast Delivery | OEM Customization

Material: 316L Stainless Steel Body, Silver-Plated & Nitrided Ferrules (5μm Layer)
Max Working Pressure: 6000 PSI @100°F (Dry Air) / 3000 PSI @450°F (Flammable Gas)
Temperature Range: -65°F to 1200°F (-54°C to 648°C) with Graphite Seals
Connection Type: Double Ferrule Compression (Reusable) / NPT Threads
Certification:ASTM A240/A269 Material Compliance
Lead Time: 5-7 Days Standard / 3 Days Urgent (+10% Fee)
OEM Service Free Laser Engraving & Custom Design

Product Details

Product Tags

Product Overview

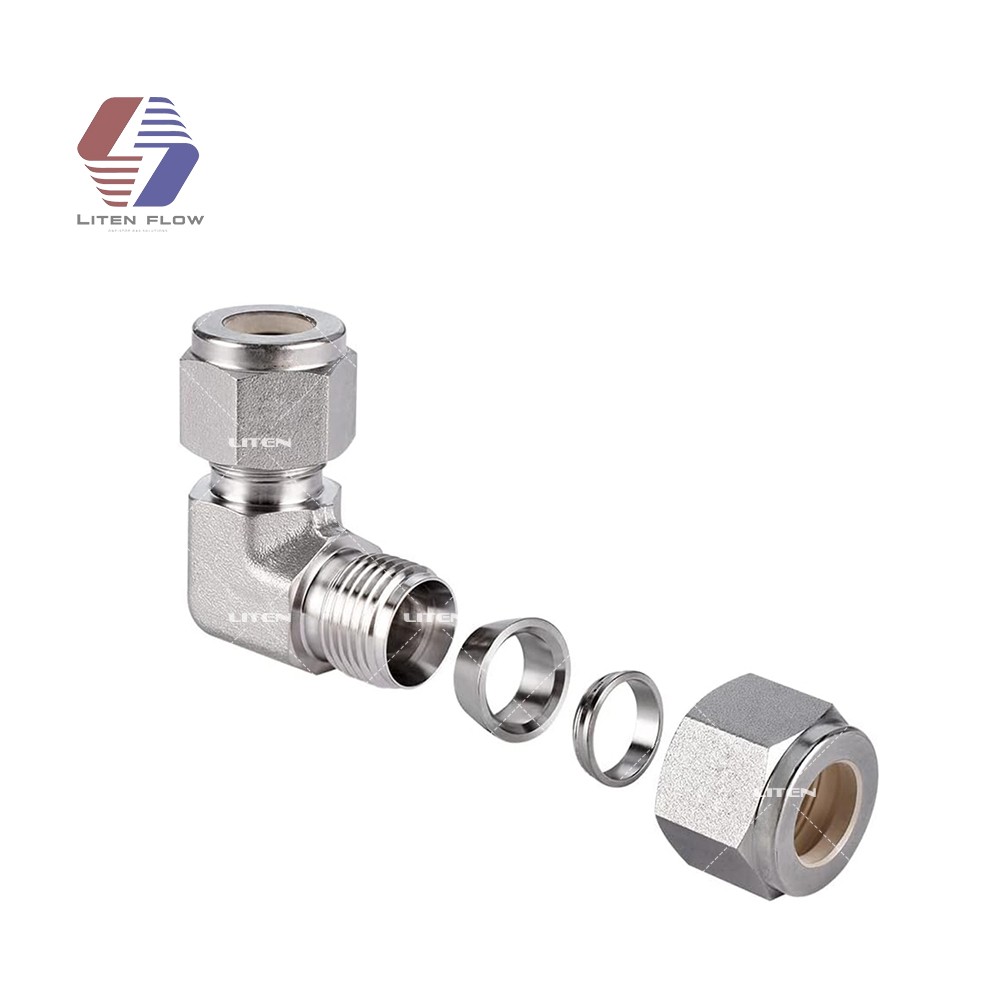

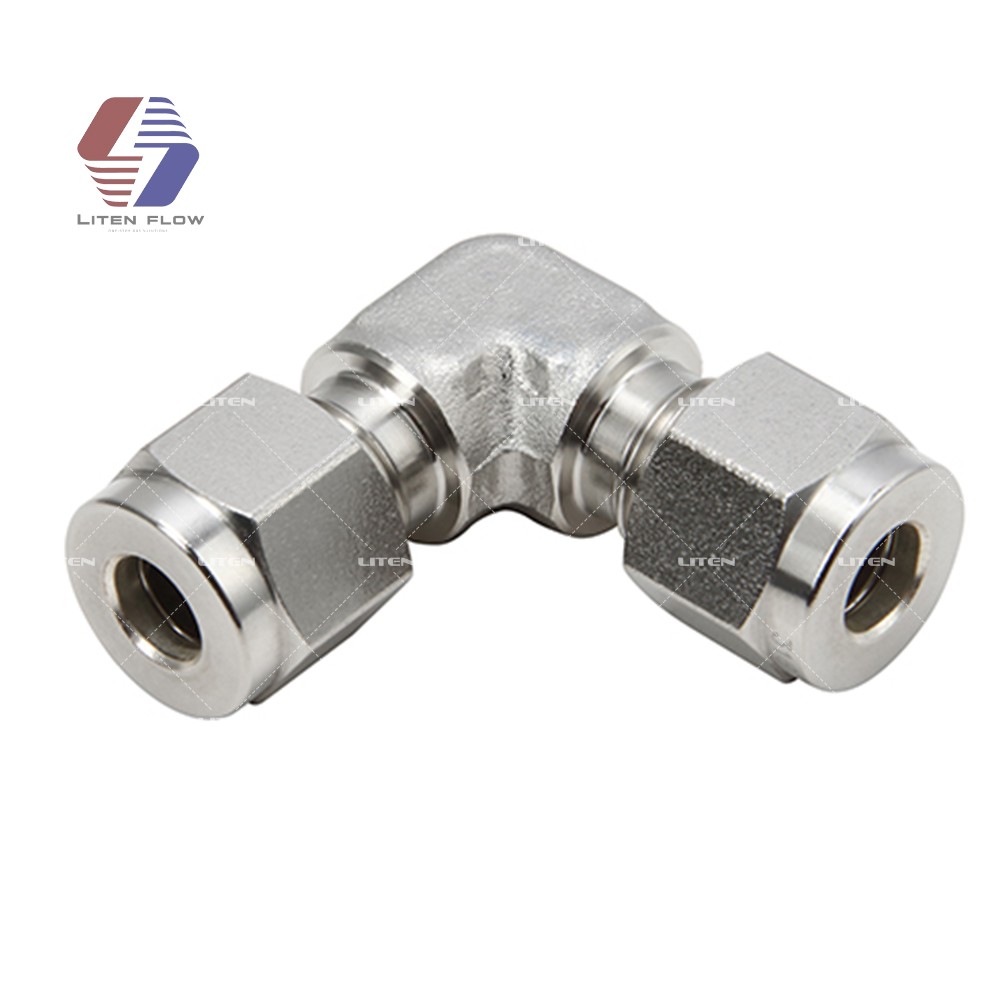

The LITEN 1/2OD 90° Union Elbow redefines reliability for industrial gas and fluid systems with silver-plated nitrided ferrules and precision engineering. Designed to rival premium-grade benchmarks, this fitting delivers leak-proof performance under extreme pressures (6000 PSI) while offering 30% cost savings and rapid 5-7 day global delivery. Ideal for hydrogen fuel systems, chemical processing, and high-vibration machinery.

Core Advantages

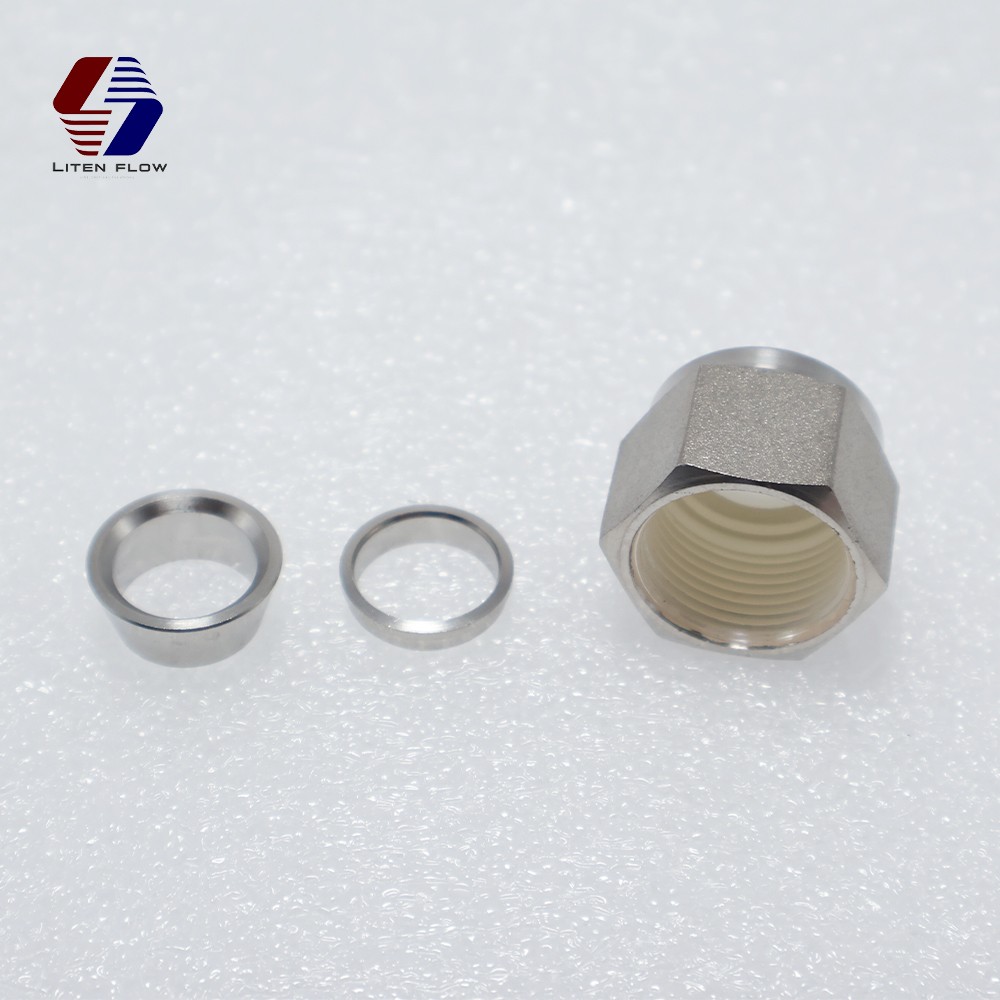

1.Silver-Plated & Nitrided Ferrules

• Surface Hardness HV 1100: 3x longer lifespan than standard ferrules (20,000+ insertion cycles tested).
• Salt Spray Resistance: 720+ hours without corrosion—perfect for marine/offshore applications.
• Ultra-Low Friction: 40% reduced friction prevents seal damage during assembly.

2.Unmatched Price & Speed

•Factory Direct, 30% cheaper than competitors with identical specs.
•5-7 Day Lead Time: 90% in-stock components + agile production. Urgent orders ship in 3 days (+10% fee).

3.Seamless OEM Integration

•Customized processing according to drawings
•Free laser engraving & custom packaging


Technical Specifications

Parameter

Details

Max Working Pressure

6000 PSI @100°F(Dry Air)/3000 PSI @450°F(Flammable Gas)

Burst Pressure

12,000 PSI (Hydraulic Tested)

Temperature Range

-65°F to 1200°F(-54℃ to 648℃)with Graphite Seals

Leak Rate

<1×10⁹mbar-L/s(Helium Tested @6000 PSI,ISO 15848 Class A
Equivalent)

Material

316L Stainless Steel Body,Silver-Plated Nitrided Ferrules(5μm Layer)

Connection

Double Ferrule Compression /NPT Threads

Certifications

ASTM A240/A269 Material Compliance(No Third-Party Certifications)

Applications

  • Oil & Gas: Subsea pipelines, refinery gas compression.
  • Chemical Plants: Sulfuric acid transfer, reactor venting.
  • Semiconductor Manufacturing: Ultra-high-purity argon/helium delivery.
  • Energy Transition: Hydrogen fuel cell systems, carbon capture.
