Positionable 90° Male Elbow with Disk O-Ring

Fitting Type: Positionable 90° male elbow
Seal Feature: Disk O-ring
Thread Description: ISO/BSP parallel thread
Size Systems: Fractional and metric
Fractional Tube O.D.: 1/4, 3/8, 1/2, 5/8, 3/4, 1 in.
Metric Tube O.D.: 6, 8, 10, 12 mm

INQUIRY

Product Details

Product Tags

Product Overview

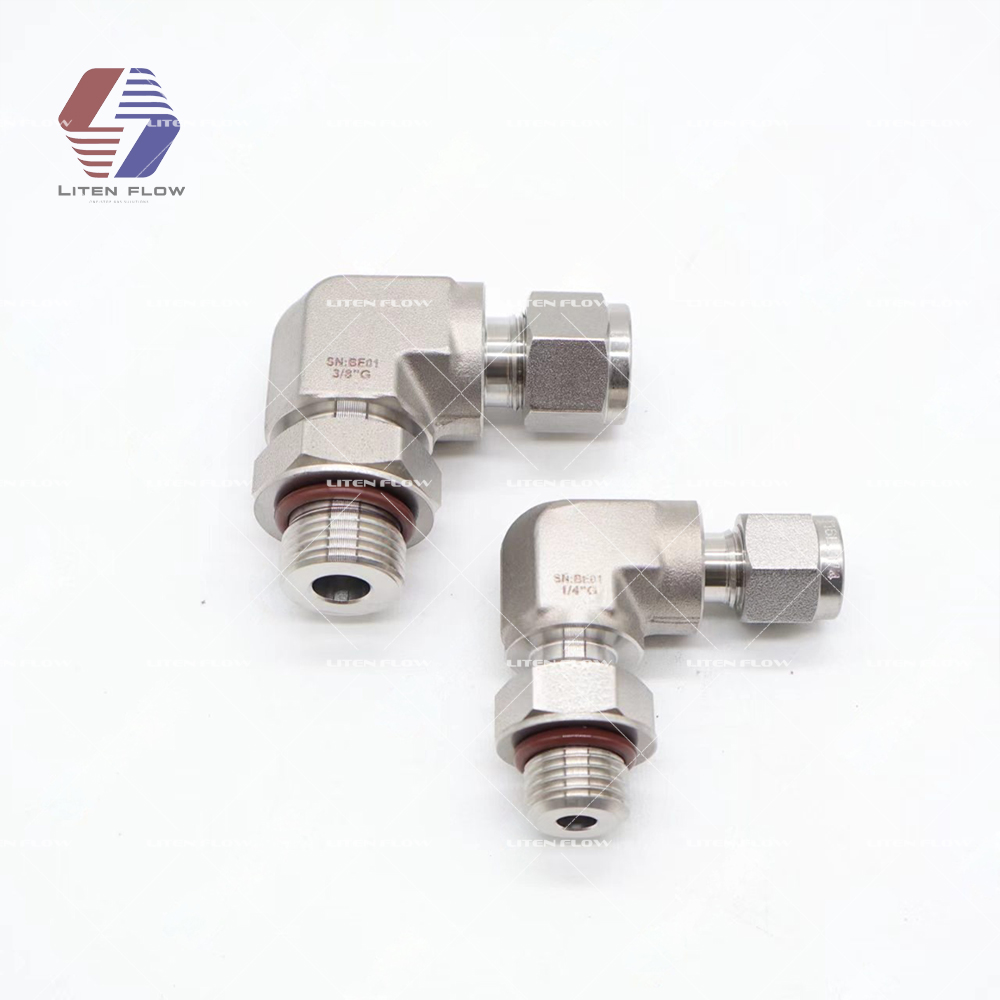

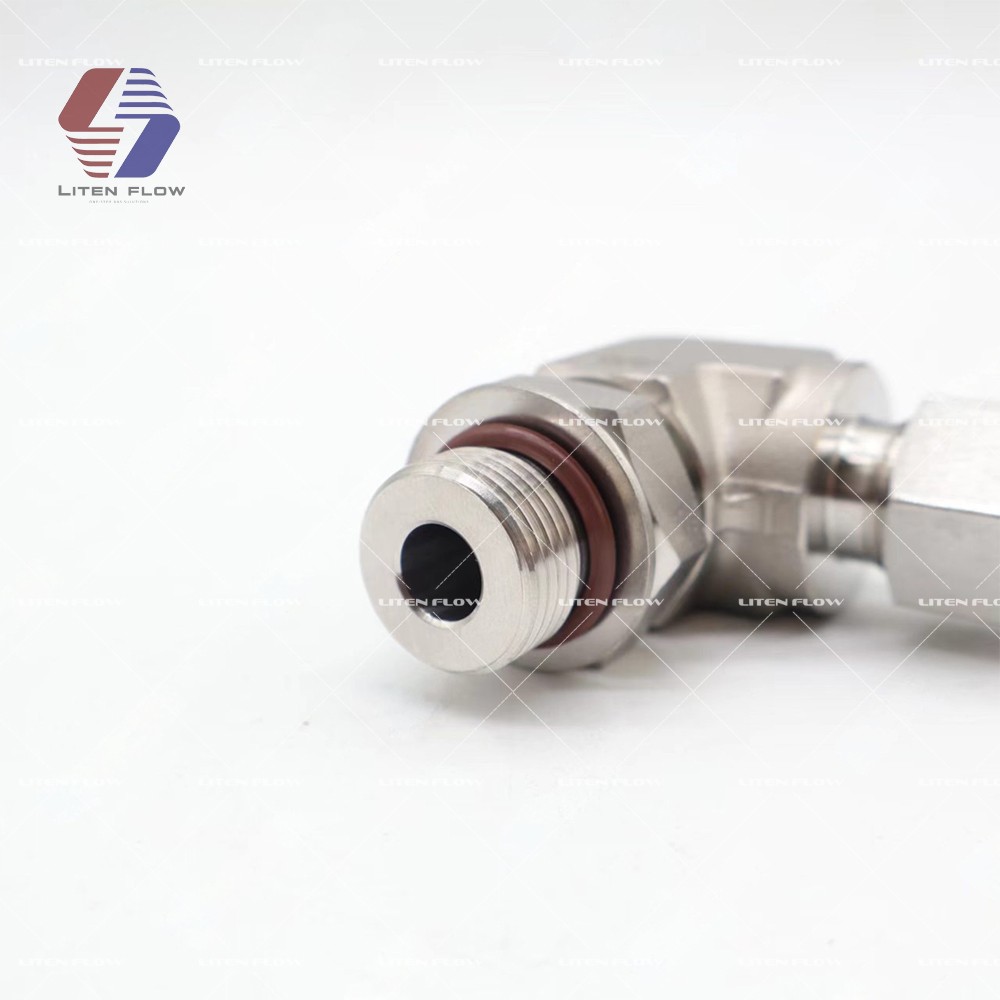

The Positionable Male Elbow with Disk O-Ring is a 90° fitting configuration for connecting a tube side with a male threaded side. The supplied product image shows a compact metal elbow body, a tube connection, a male threaded end, and an O-ring at the threaded end.

Product Parameters

Product Name	Positionable Male Elbow with Disk O-Ring
Fitting Type	Positionable male elbow	Elbow Angle	90°
Seal Feature	Disk O-ring	Size Presentation	Fractional and metric sizes
Thread Description	ISO/BSP parallel thread, as labeled in the supplied dimension sheet	Dimension Data	Tube O.D., thread size, catalog number, interchange, and dimensional values shown in the supplied sheet

Key Features

Positionable 90° Elbow Configuration

The supplied product information identifies a positionable male elbow in a 90° configuration for compact directional routing.

Disk O-Ring Detail

The supplied dimension drawing labels an O-ring at the male threaded end of the elbow configuration.

Fractional and metric tube fitting size options

Fractional and Metric Selection

The supplied dimension sheet presents fractional and metric options with tube O.D., thread size, catalog number, interchange, and dimensional columns.

Get a Quick Quote: Positionable Male Elbow with Disk O-Ring

Contact LITEN for product information, specifications, pricing, and quotation support.

Get a Quick Quote

Dimensions & Selection Table

The following dimension data is transcribed from the supplied Positionable Male Elbow dimension sheet. Select the row matching the required tube outside diameter and thread size, then confirm the catalog number and application details with LITEN before ordering.

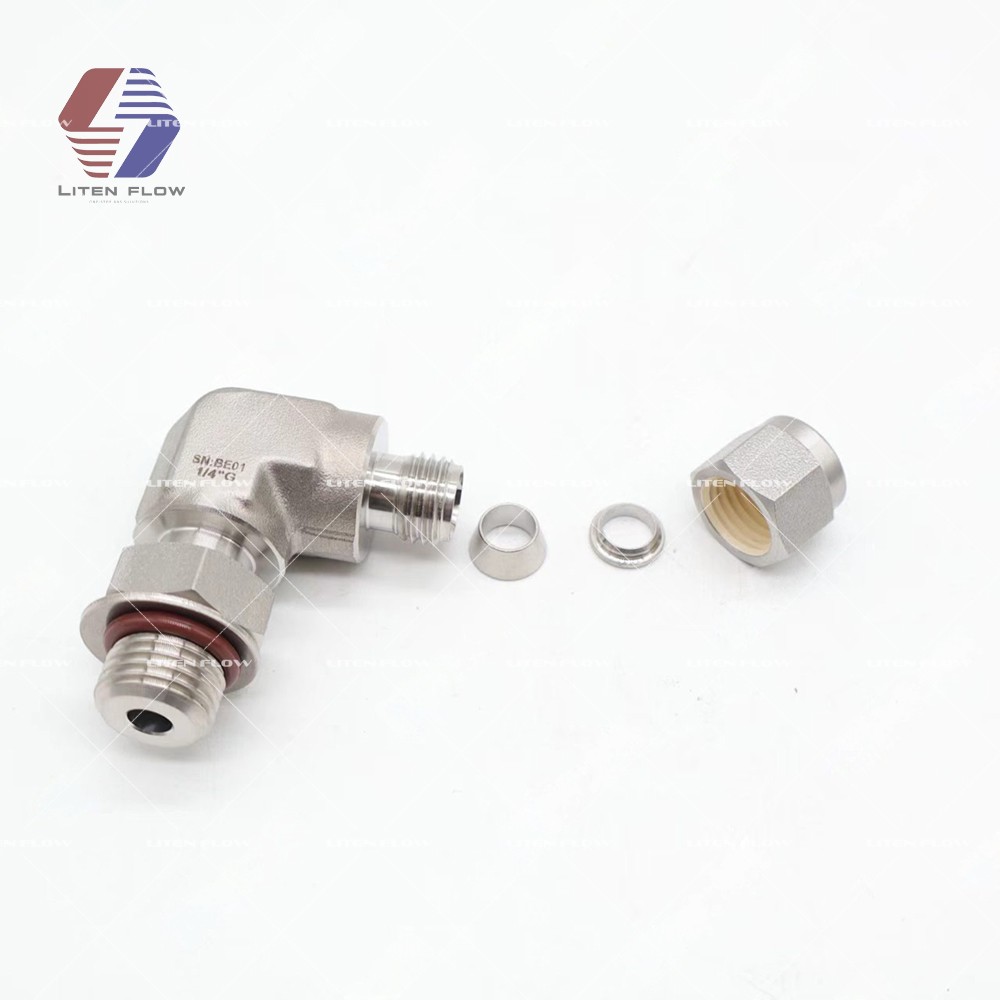

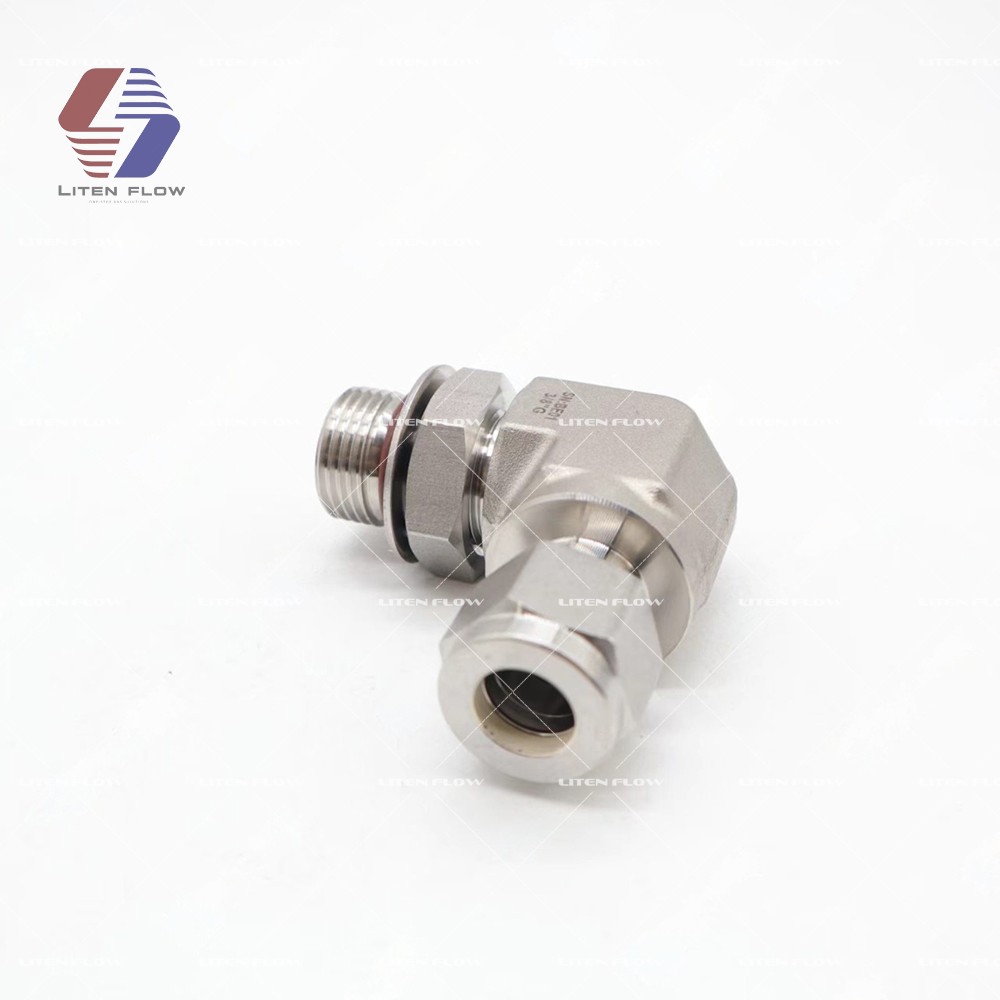

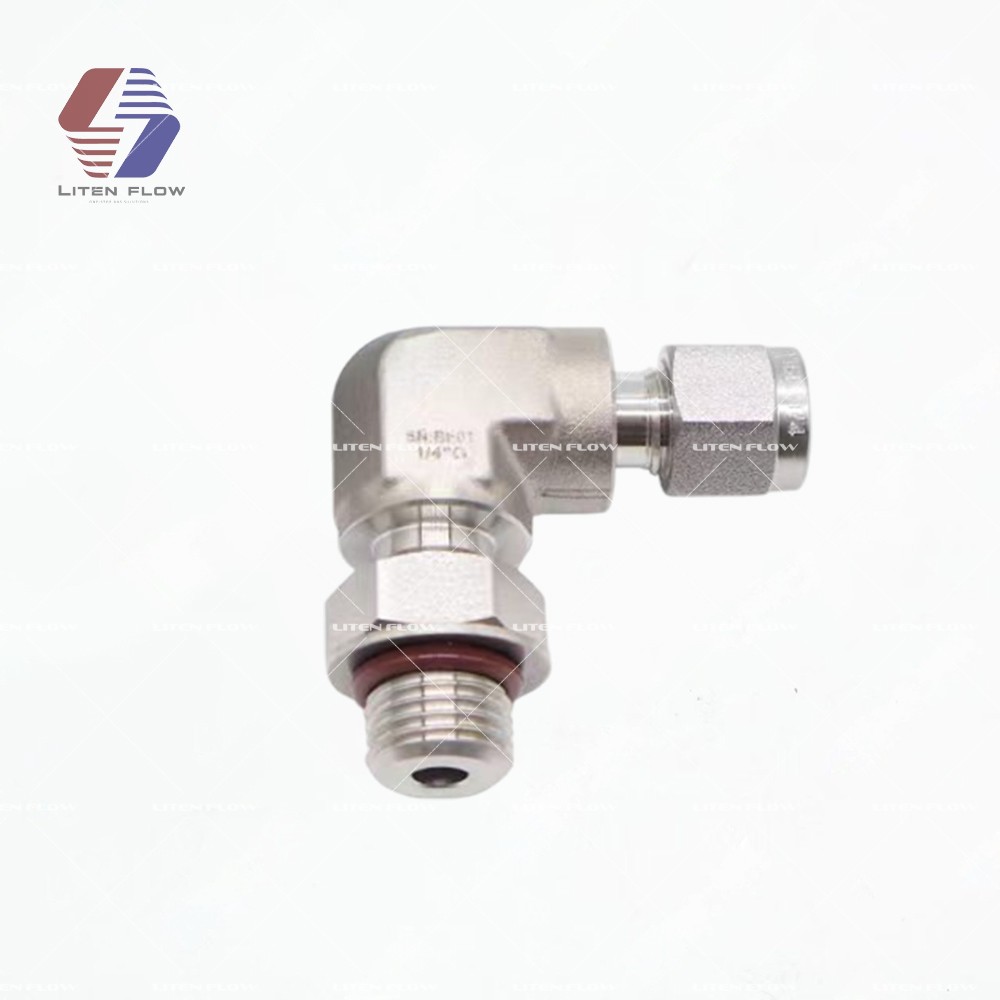

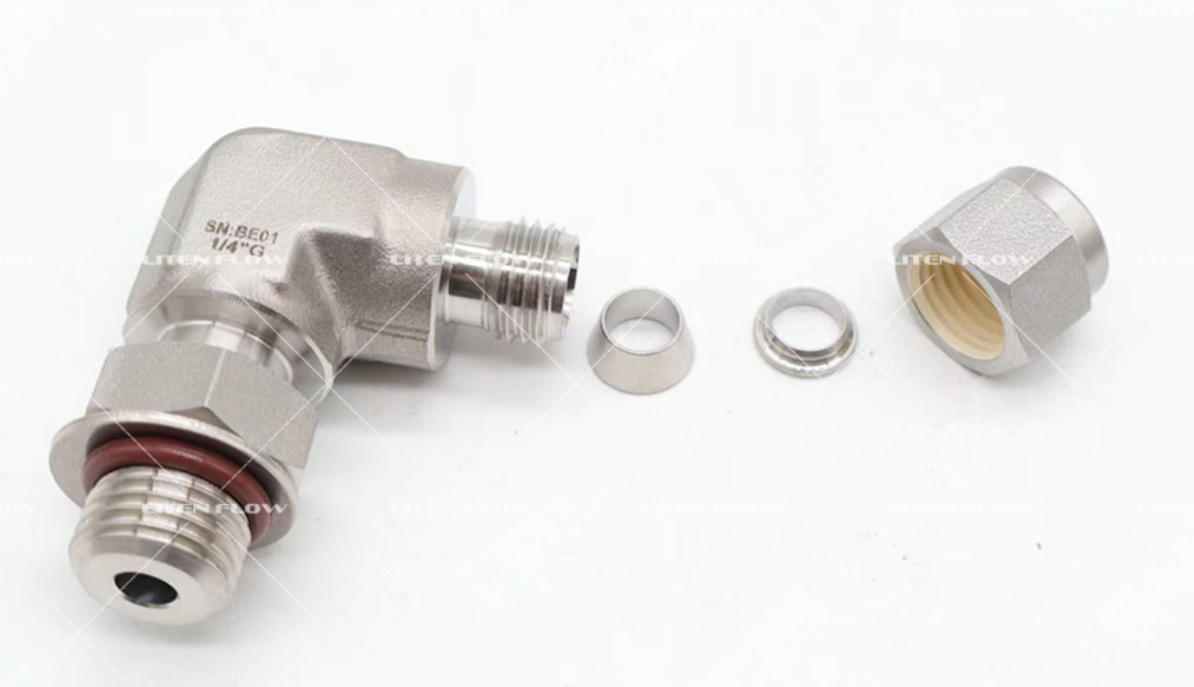

LITEN Positionable Male Elbow with Disk O-Ring product view

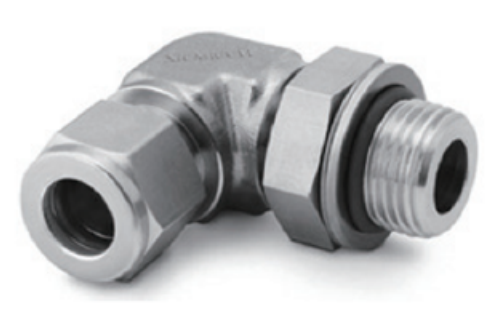

Positionable Male Elbow structure or component view

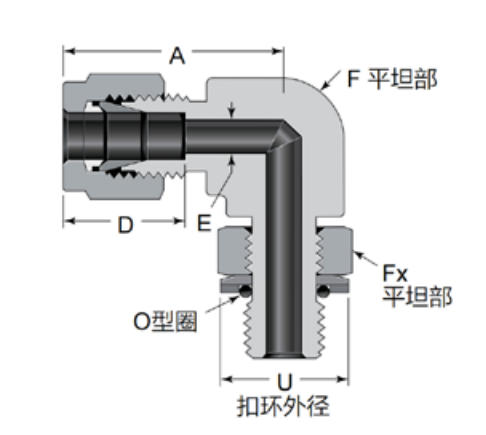

Positionable Male Elbow dimensional drawing and size reference

Fractional Sizes

Tube O.D. (in.)	Thread Size (in.)	Catalog Number	Interchange	A	D	E°	F A/F	Fx A/F	U
1/4	1/8	6-MES-04-02	-400-2-2PR	1.06	0.60	0.19	1/2	9/16	0.60
1/4	1/4	6-MES-04-04	-400-2-4PR	1.14	0.60	0.19	5/8	3/4	0.80
3/8	1/4	6-MES-06-04	-600-2-2PR	1.20	0.66	0.23	5/8	3/4	0.80
3/8	3/8	6-MES-06-06	-600-2-6PR	1.31	0.66	0.28	13/16	7/8	0.96
1/2	1/4	6-MES-08-04	-810-2-4PR	1.42	0.90	0.23	5/8	3/4	0.80
1/2	3/8	6-MES-08-06	-810-2-6PR	1.42	0.90	0.31	13/16	7/8	0.96
1/2	1/2	6-MES-08-08	-810-2-8PR	1.50	0.90	0.41	15/16	1 1/16	1.16
5/8	1/2	6-MES-010-08	-1010-2-8PR	1.50	0.96	0.47	15/16	1 1/16	1.16
3/4	1/2	6-MES-012-08	-1210-2-8PR	1.57	0.96	0.47	1 1/16	1 1/16	1.16
3/4	3/4	6-MES-012-12	-1210-2-12PR	1.57	0.96	0.62	1 1/16	1 3/8	1.43
1	3/4	6-MES-016-12	-1610-2-12PR	1.93	1.23	0.62	1 3/8	1 3/8	1.43
1	1/2	6-MES-016-16	-1610-2-16PR	1.93	1.23	0.78	1 3/8	1 5/8	1.82

Metric Sizes

Tube O.D. (mm)	Thread Size (in.)	Catalog Number	Interchange	A	D	E°	F A/F	Fx A/F	U
6	1/8	6-MES-6-02	-6M0-2-2PR	27.0	15.3	4.0	1/2	9/16	15.2
6	1/4	6-MES-6-04	-6M0-2-4PR	29.0	15.3	4.8	5/8	3/4	20.3
8	1/8	6-MES-8-02	-8M0-2-2PR	28.8	16.2	4.0	9/16	9/16	15.2
8	1/4	6-MES-8-04	-8M0-2-4PR	29.9	16.2	5.9	5/8	3/4	20.3
10	1/4	6-MES-10-04	-10M0-2-4PR	33.5	17.2	5.9	13/16	3/4	20.3
10	3/8	6-MES-10-06	-10M0-2-6PR	33.5	17.2	7.9	13/16	7/8	24.4
12	1/4	6-MES-12-04	-12M0-2-4PR	36.0	22.8	5.9	13/16	3/4	20.3
12	3/8	6-MES-12-06	-12M0-2-6PR	36.0	22.8	7.9	13/16	7/8	24.4
12	1/2	6-MES-12-08	-12M0-2-8PR	38.0	22.8	9.5	15/16	1 1/16	29.5
12	3/4	6-MES-12-12	-12M0-2-12PR	39.0	22.8	9.5	1 1/16	1 3/8	36.3

Note: The dimension sheet identifies E as the minimum nominal opening and notes that the actual opening at the pipe/straight-thread end may be larger.
