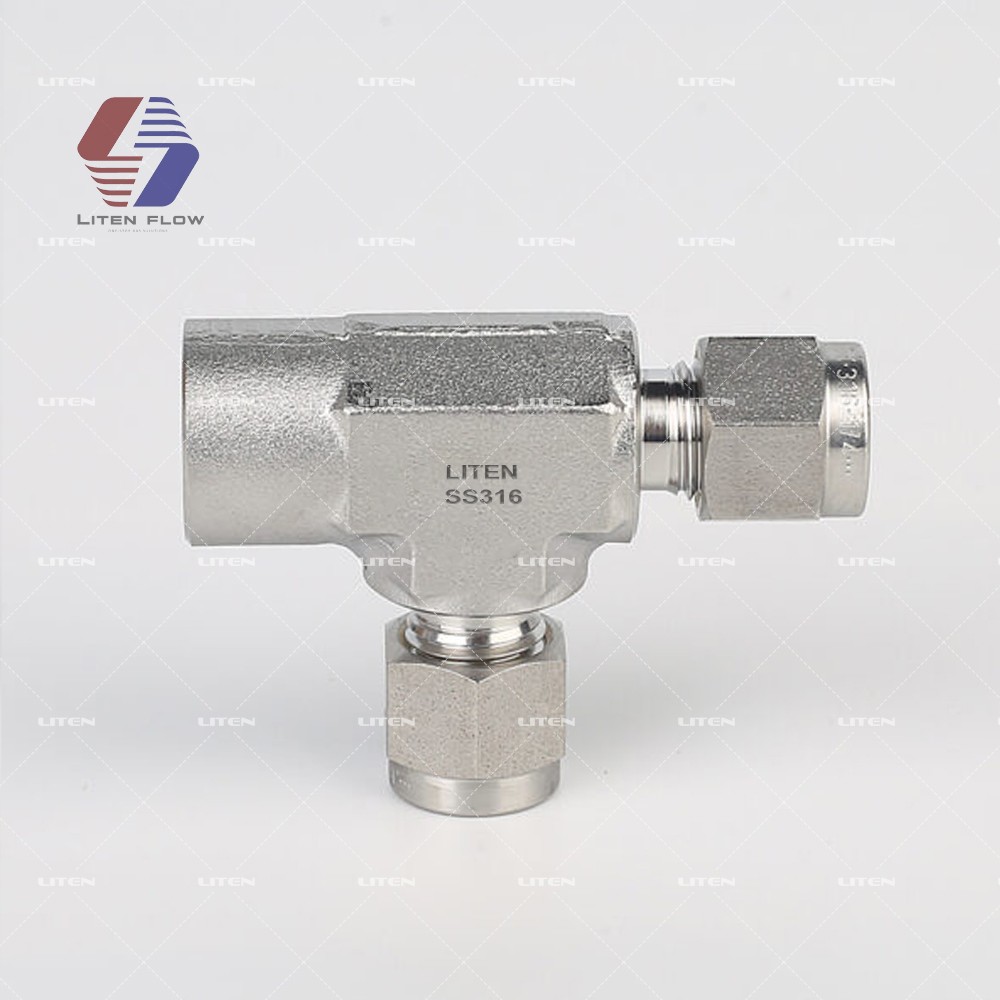

LITEN FRT Female Run Tee
Advanced Sealing Solution for High-Pressure Gas Applications
Key Features
✅ Nitrided Surface Ferrule
40% harder surface treatment vs standard ferrules
Eliminates thread galling in gas systems
5X corrosion resistance (ASTM B117 salt spray tested)
✅ Silver-Plated Compression Nut
Reduces friction by 35% during installation
Maintains consistent torque values (±10%)
Prevents hydrogen embrittlement in gas service
✅ Triple-Seal Technology
1.Radial compression seal 2.Axial face seal 3. Thread compound backup
Technical Specifications
|
Tube Outside Diameter |
1/4" (O.D.) |
Connection Thread Size |
1/4" NPT |
|
Brand |
LITEN |
Configuration |
Tube to Pipe (Female Pipe) |
|
Product Style |
Female National Pipe Tapered (NPT) Run Tee |
Shape |
Tee |
|
Operating Pressure |
4000 to 10300 psi |
Min Operating Temp |
--65℉(-54°C) |
|
Max Operating Temp |
400℉(+204°C) |
For Fluid Type |
Gases, Liquid, Fuels, Oil, Corrosive, CNG, Hydrogen, Steam |
|
Length |
2.05 inch |
Materials |
Steel |
|
Technology |
Process Control |
Applications |
|
|
Instrumentation, Analytical Installations, CNG/LNG Lines, Hydrogen Service, |
|||
|
Offshore Control Panels, Sensing Lines, Research Labs, Semiconductor, |
|||
|
Microelectronics, Chemical, Petrochemical, Transportation, Power Generation, |
|||
|
Nuclear, Oil & Gas |
|||
FAQ Section
Q: Compatible with Parker A-Lok systems?
A: Fully interchangeable with industry-standard NPT threads (ASME B1.20.1). Tested for 100% compatibility with Parker, Swagelok, and Hylok fittings.
Q: Maximum gas purity level?
A: Certified for UHP systems up to 99.999% purity
Q: Lead time for bulk orders?
A: 1000 units: 7~10days production, worldwide shipping
Q: Do you offer OEM services with logo marking?
A: Yes! We provide OEM solutions with:
✓ MOQ 10 units for custom laser marking
✓ Free logo engraving & batch coding
✓ Custom packaging options
✓ 3-5 day rapid prototyping
