High Purity Two Stage Pressure Regulator 4000 PSIG Max. In 100PSIG Out CGA 580 Inlet

High Purity Two Stage Pressure Regulator 4000 PSIG Max. In 100PSIG Out CGA 580 Inlet

Inlet Connection: CGA 580
Outlet Connection: 0.125" NPT(F)
Max Inlet Pressure: 4000 PSIG
Outlet Pressure: Adjustable 0-100 PSIG
Material: 316L Stainless Steel Diaphragm, PTFE Seals
Application:Laboratories, Petrochemical, Semiconductor
Warranty: 1-Year Limited Warranty

Product Details

Product Tags

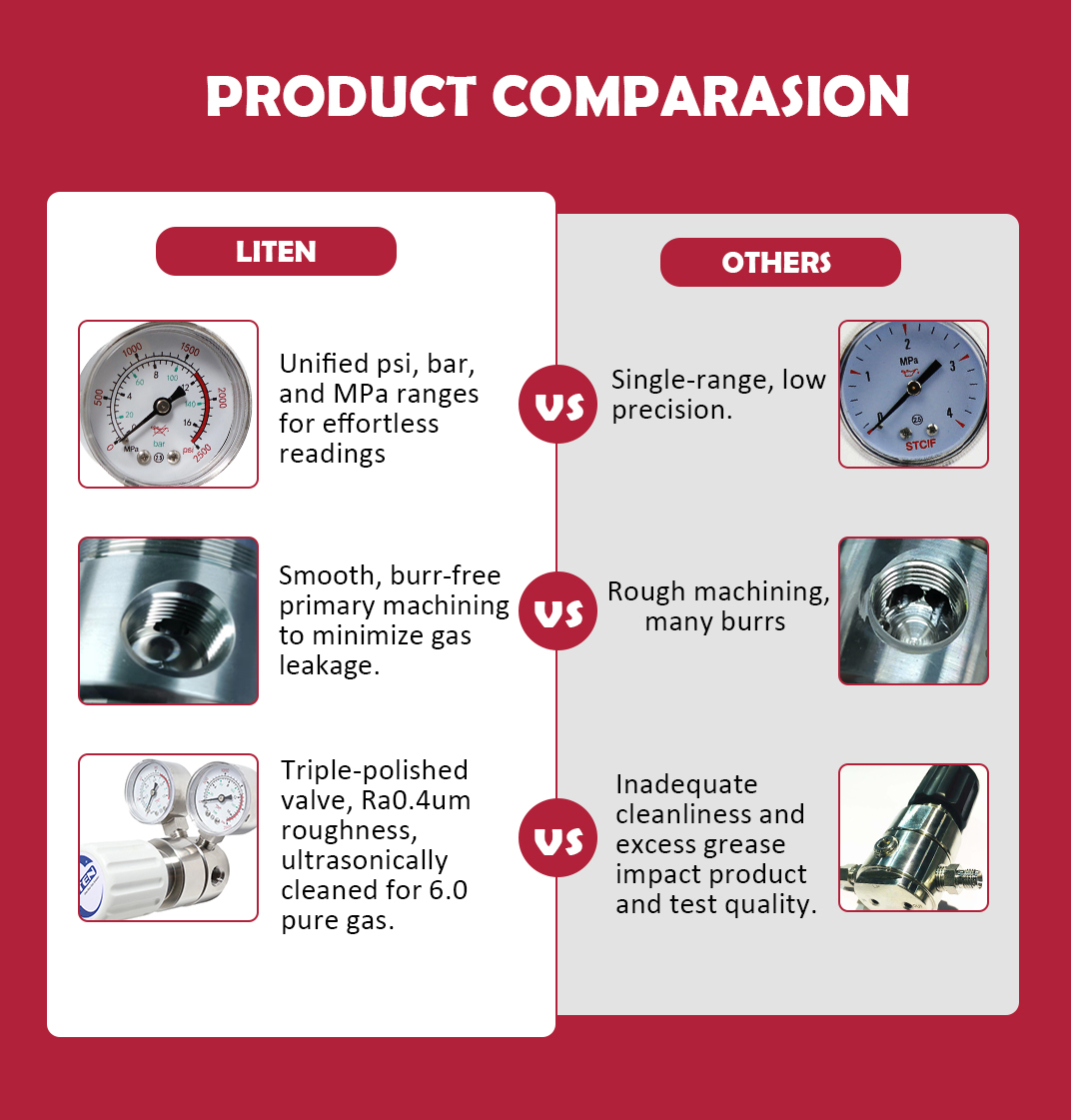

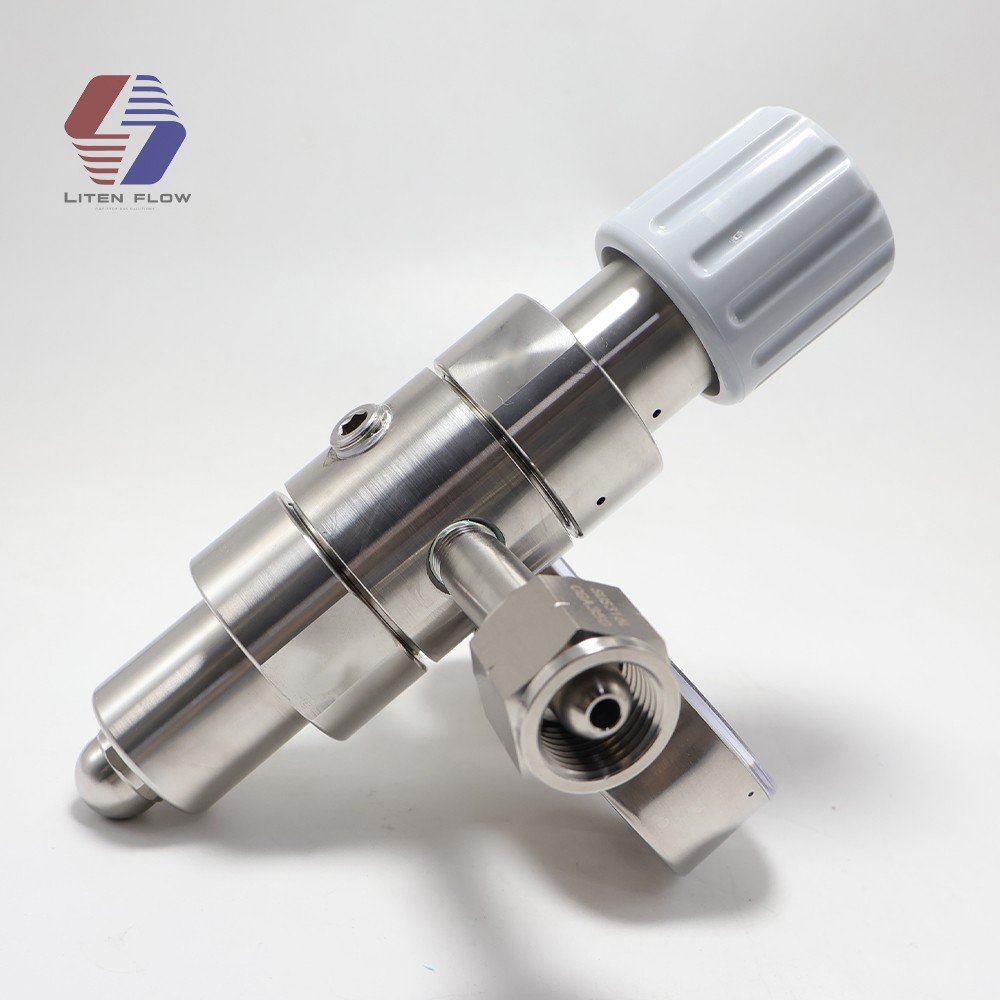

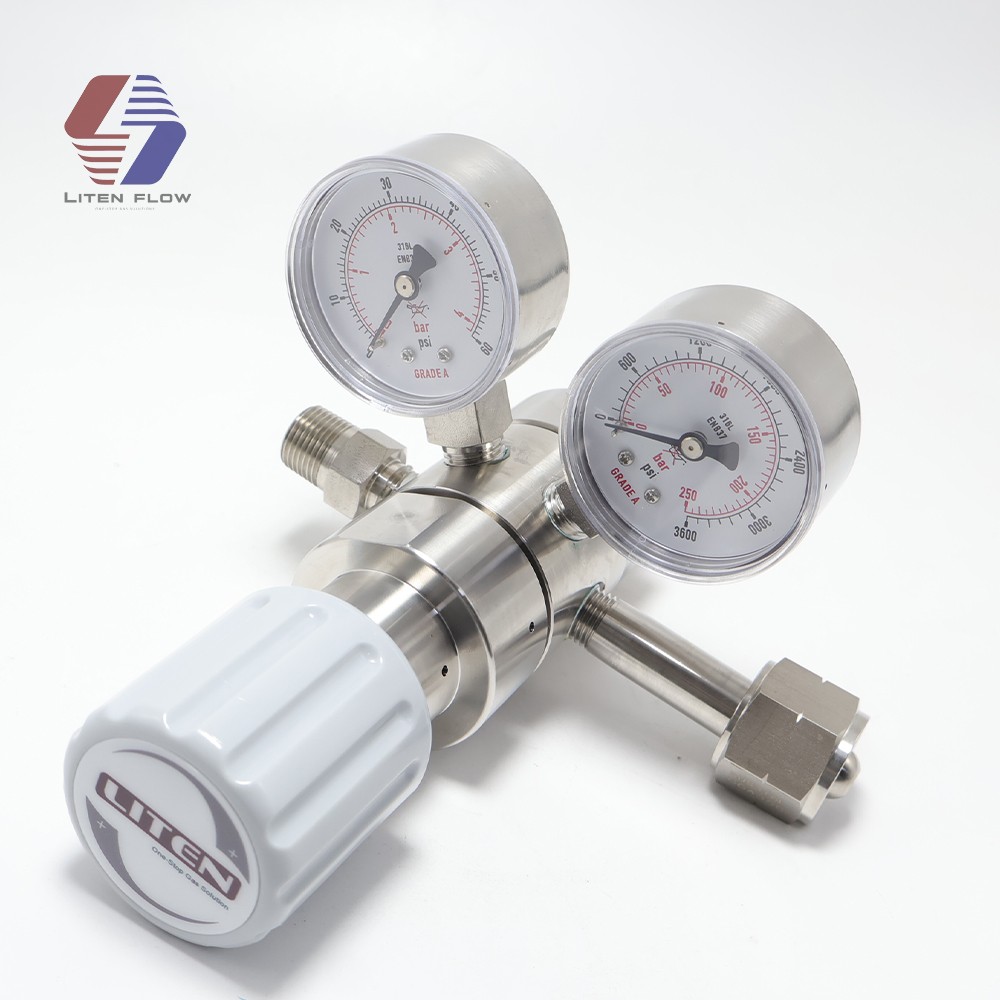

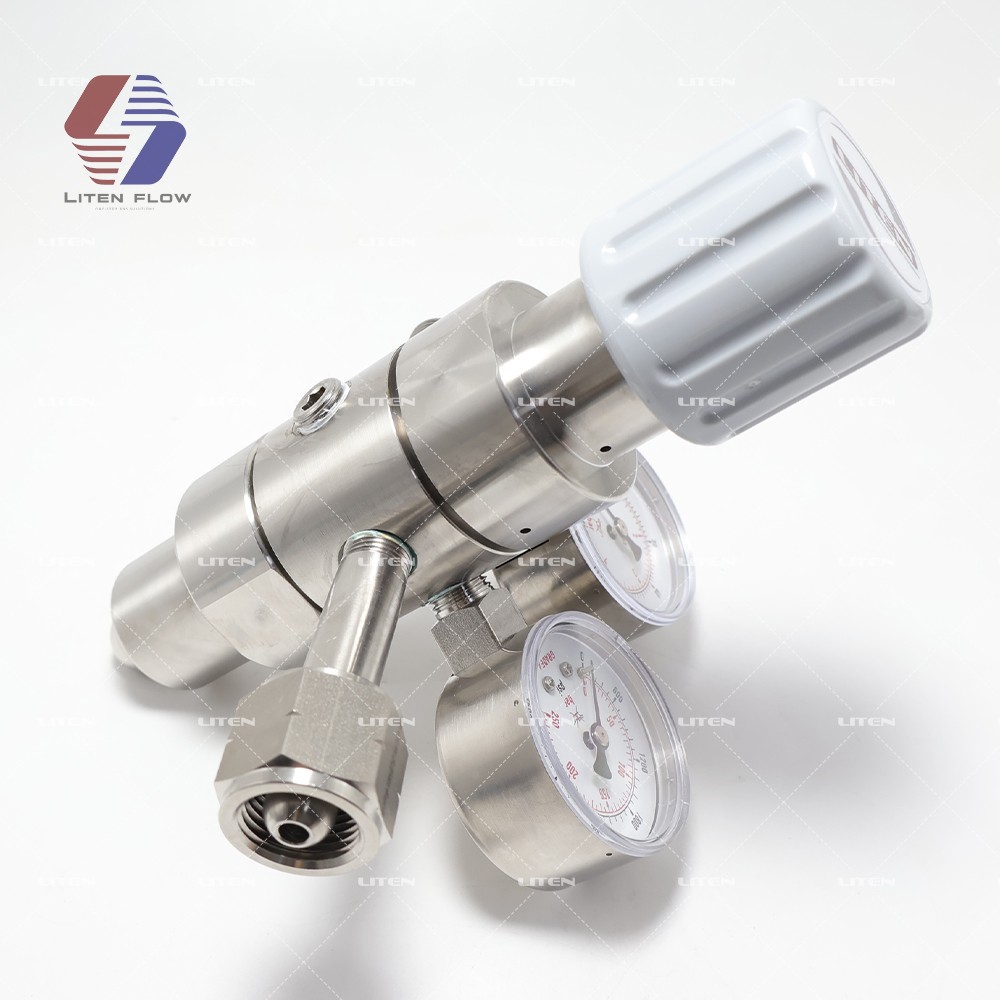

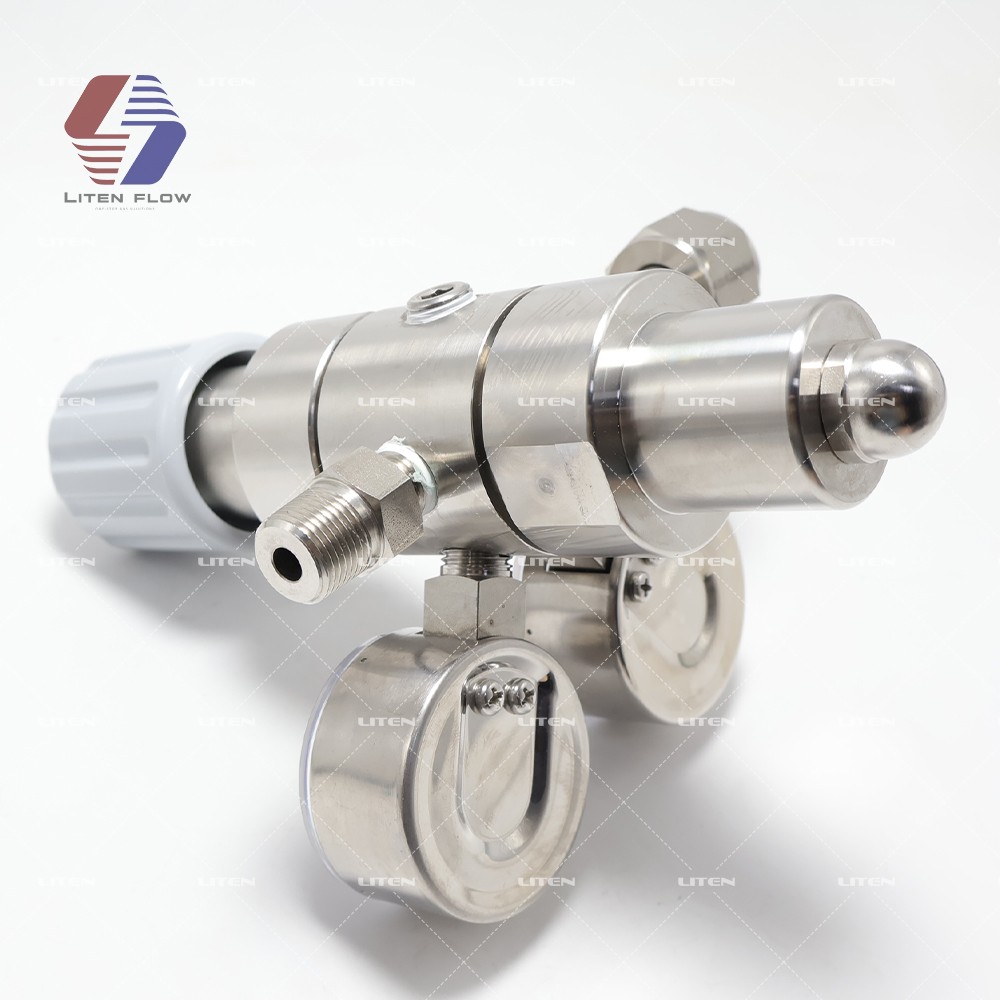

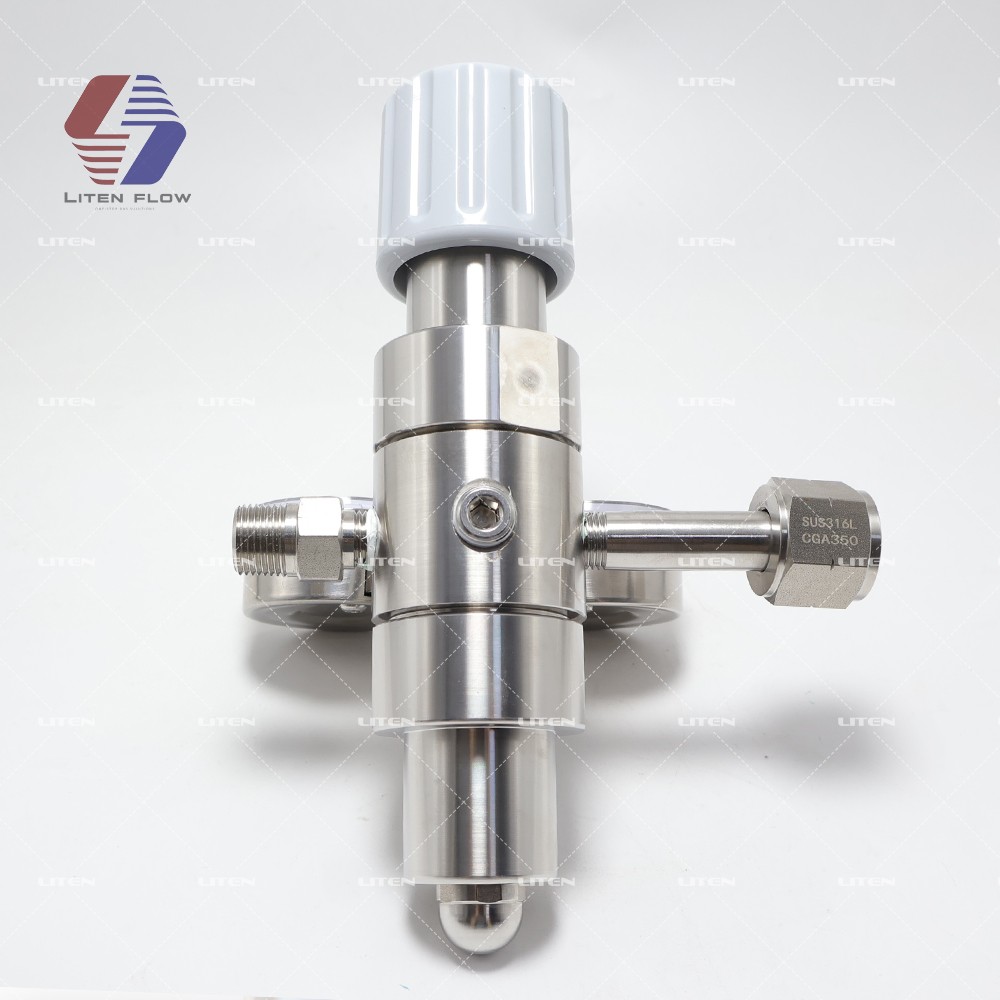

High Purity Two Stage Pressure Regulator 4000 PSIG Max. In 100PSIG Out CGA 580 Inlet


R31 gas regulator is a two stage, stainless steel, high purity regulator with CGA 580 (inert gas) inlet and stainless steel 1/4 inch FNPT outlet port. It features a 316L stainless steel diaphragm and a one piece encapsulated seat with sintered filter to prevent contamination. The R31 is recommended for gas purity levels of Grade 6.0 (99.9999%) and higher. It is ideal for
laboratory and research applications where corrosive or ultra high purity gases are being used. Is is designed for use in gas chromatography, EPA protocol, laser gas and emission monitoring.


Features：

◎Two Stage design ensures constant delivery pressure, regardless of gas cylinder pressure dropStainless Steel CGA 580 ◎Inert Gas inlet (Argon, Helium, Nitrogen, Krypton, etc.)
◎Stainless Steel 1/4 inch female NPT outlet port
◎1-11/16 inch 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
◎316L stainless steel body and fittings; chrome plated bonnet
◎One piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination2 inch dual scale stainless steel qauges(psi/bar)
◎Designed to 1 x 10-9 cc/sec. inboard helium leak rate to maintain gas purity levels
◎Panel mountable, front and back bonnet threaded
◎Maximum inlet 3000 PSIG
◎Optional interstage relief valve available
◎Available with delivery pressures up to 250psigI. (Please specify above)


Specifications

Connection Type

Inlet:0.25 in.NPT(F),Outlet:0.125 in.
NPT(F)

Diaphragm Material

316L Stainless Steel


For Use With (Application)


Gas Chromatography,Research
Laboratories,Process Analyzer,
Petrochemical Industry,Pharmaceutical and
Biotechnology,Gas Detection Equipment,
Emission Monitoring Systems

Type

Dual-stage Regulator

Gauge Pressure(English)

2  in.

Inboard Leakage

2×10-8 atm.cc/sec.He

Gauge Pressure (Metric)

5.08 cm

No.of Stages

Dual

Knob Material

ABS Plastic

Operating Temperature Range(Metric)

-40℃ to+74℃

Operating Temperature Range (English)

-40°F to +165°F

Pressure Range (Inlet)

3000 psi

Port Type

M

Seat Material

PTFE

Seal Material

Metal

Weight(Metric)

0.73 kg

Weight(English)

1.6  Ib.

LITEN PRESSURE REGULATOR

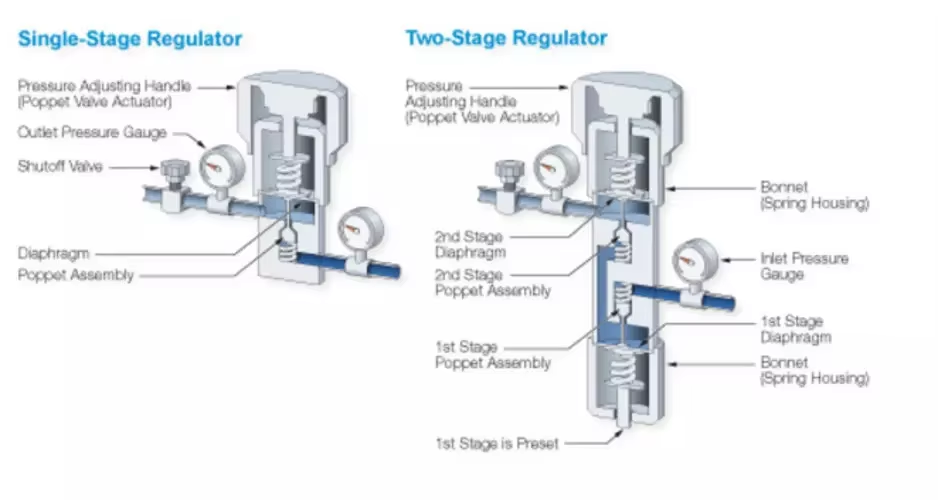

What is the difference between a single-stage vs. two-stage regulator?

Single-stage and two-stage regulators have different droop characteristics and respond differently to changing supply pressure.

The single-stage regulator shows little droop with varying flow rates, but a relatively large supply pressure effect. Conversely, the two-stage regulator shows a considerable droop, but only small supply pressure effects. A single-stage regulator is recommended where inlet pressure does not vary greatly or where periodic readjustment of delivery pressure does not present a problem. A two-stage regulator, however, provides constant delivery pressure with no need for periodic readjustment.
difference between a single-stage vs. two-stage regulator
