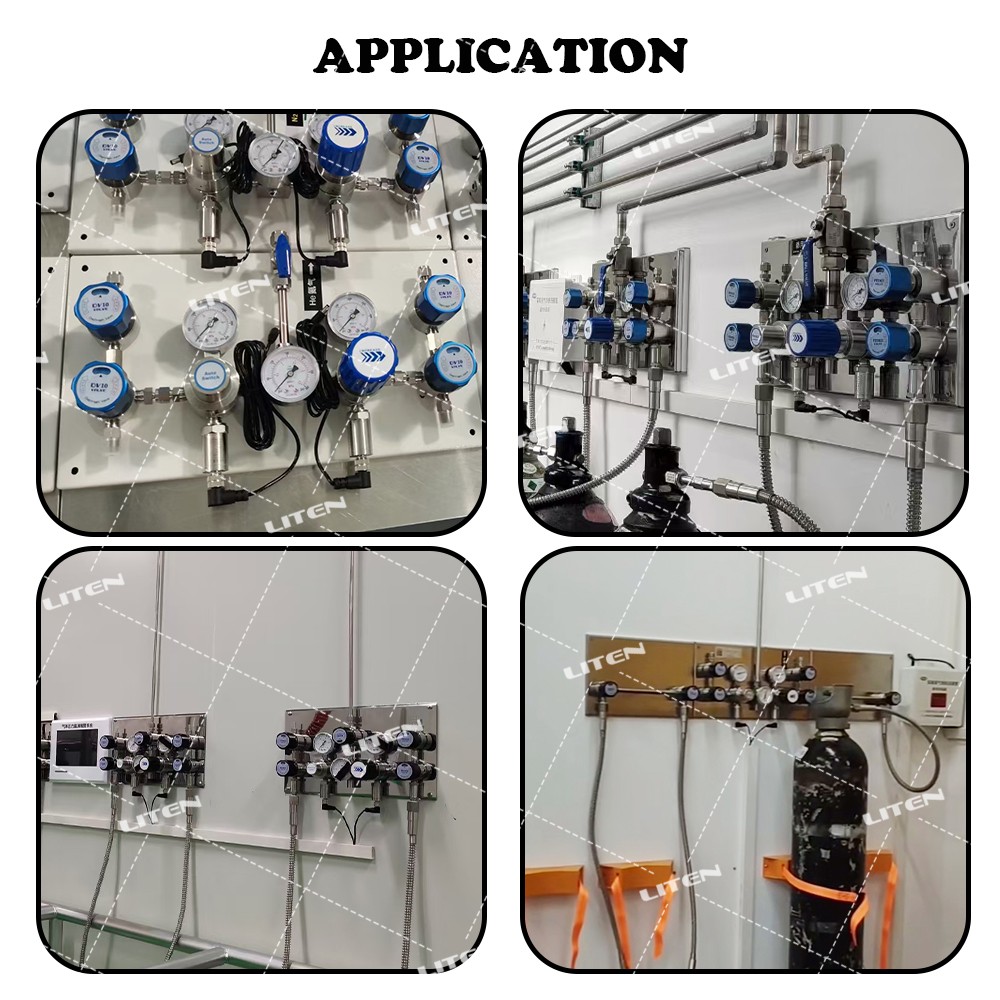

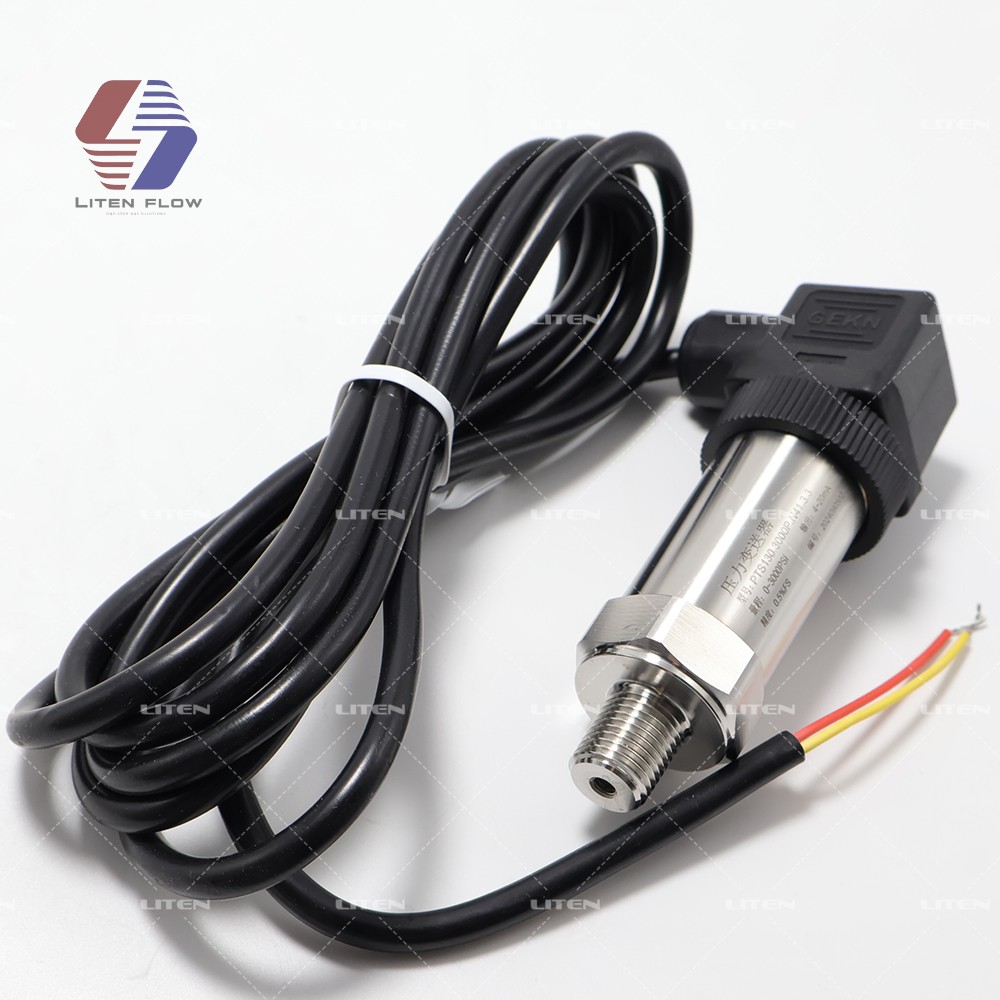

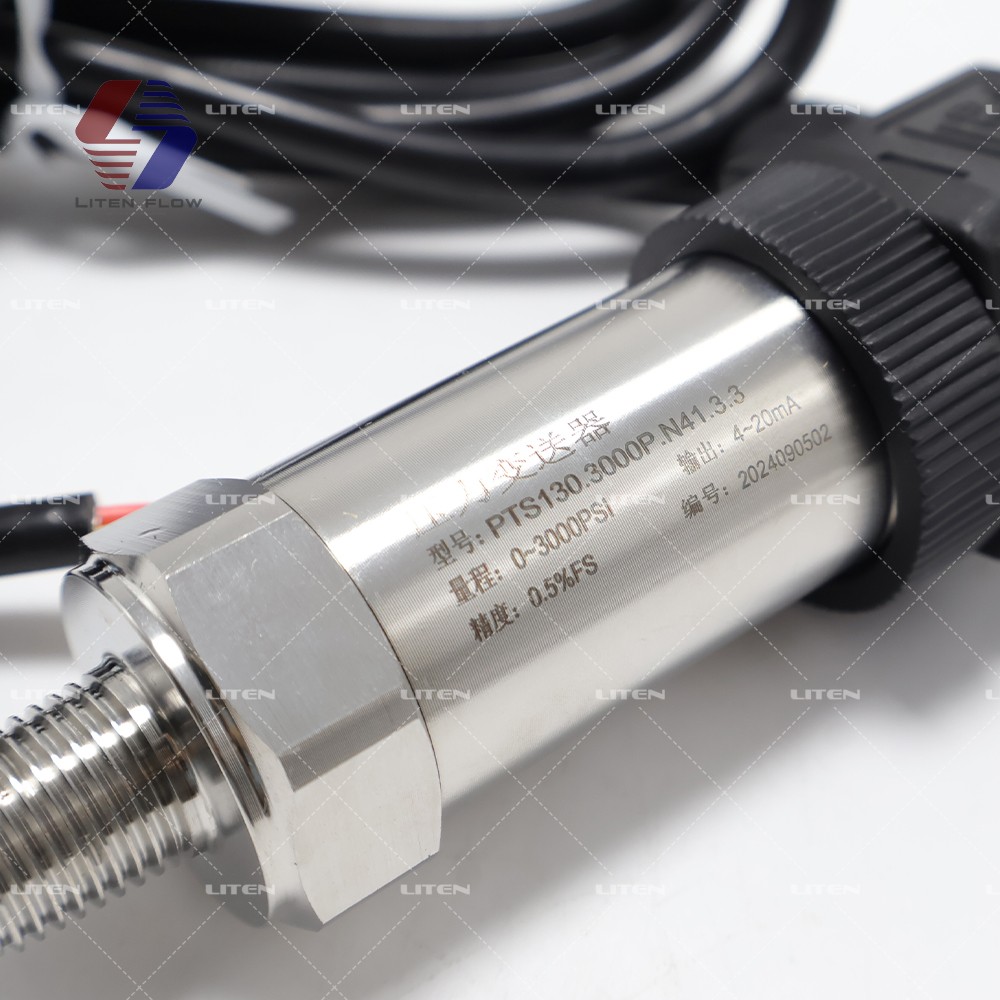

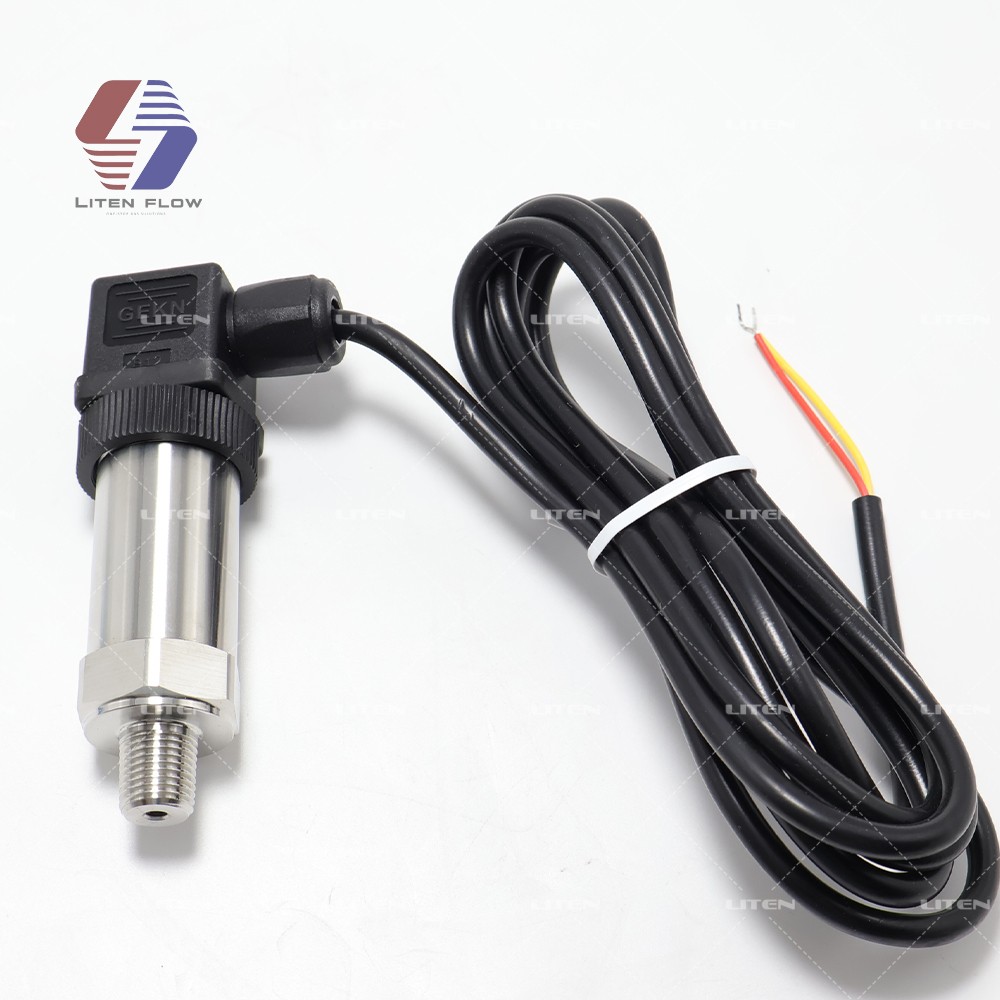

PTS Series Pressure Transmitter for Gas Pressure Measurement

The PTS Series Pressure Transmitter integrates advanced diffusion silicon isolated diaphragm sensors and high-quality.

German-imported connectors, ensuring exceptional stability, reliability, and superior impact pressure resistance.

Key Features:

* 316 Stainless Steel Isolation Diaphragm: Encapsulated with silicone oil to isolate measurement media, compatible with all 316 stainless steel-friendly substances.

* Diffusion Silicon Core Technology: Delivers high sensitivity and linearity, making it ideal for low-range pressure measurement applications (e.g., gas pressure monitoring).

* Robust Construction: Designed for durability in harsh environments, with excellent corrosion resistance and long-term

performance consistency.

Technical Specifications:
Power Supply:	9-30 VDC	Output Signal:	4-20 mA(0-5V,1-5V,0-10 V selectable)
Static Accuracy:	±0.5%FS;±0.25%FS	Temperature Drift:	≤±0.025%FS/℃(0-80℃)
Long-term Stability:	≤±0.25%FS/year (for±0.5% accuracy)≤±0.15%FS/year (for ±0.25%accuracy)	Measured Media:	Gases and liquids compatible with 316 stainless steel
Zero Offset &Full- scale Offset:	≤Corresponding accuracy error level	Media Temperature:	*Default:-40 to+85°℃ *Optional:-40 to+125℃
Overload Pressure:	2×rated pressure (Duration:1 minute)	Storage Temperature:	-40 to +85℃
Load Capacity:	≥[(supply voltage-8.5)/0.02]Q (current output)≥0.5mA (voltage output)	Housing Material &Insulation Resistance:	*Stainless steel *Insulation resistance:≥500 MQ
Mechanical Lifespan:	≥5 million pressure cycles	Burst Pressure (Duration:0.1 sec):	≥3×rated pressure
