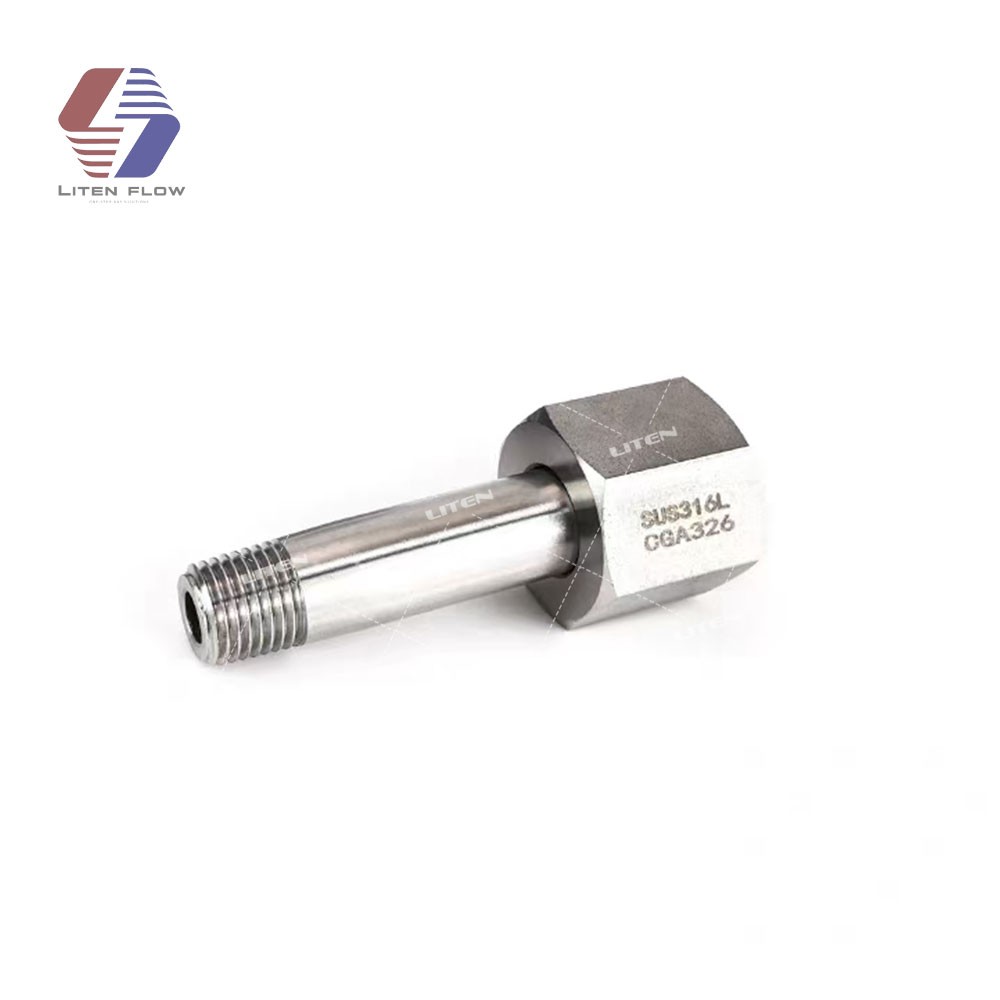

CGA 326 Cylinder Inlet Fitting to 1/4 Male NPT

Connection: CGA 326
Outlet Thread: 1/4 Male NPT
Material: 316L Stainless Steel
Configuration: Long Pattern
Application: Nitrous Oxide Cylinder Connection

INQUIRY

Product Details

Product Tags

Product Overview

The LITEN CGA 326 cylinder inlet fitting is designed to connect a compatible gas pressure regulator or transfer line to a nitrous oxide cylinder valve. It combines a CGA 326 cylinder connection with a 1/4" male NPT regulator connection in a long-pattern stainless steel construction.

The bullet-nose interface provides a metal-to-metal cylinder seal, while the extended nipple configuration supports regulator installation where additional connection length is required. It is suitable for industrial gas supply, laboratory gas systems, medical-gas equipment integration, and gas distribution assemblies where CGA 326 compatibility is specified.

Product Parameters

Product Name	CGA 326 Cylinder Inlet Fitting
Brand	LITEN
Cylinder Connection	CGA 326
Regulator Connection	1/4" Male NPT
Configuration	Long-Pattern Nipple with CGA Nut
Nipple Length	Approx. 3.0 in / 76.2 mm
Material	Stainless Steel
Seal Type	Bullet-Nose Metal-to-Metal Cylinder Seal
Maximum Working Pressure	Up to 3000 psig / 207 bar*
Compatible Gas	Nitrous Oxide (N₂O), subject to system and local-code verification
Typical Use	Gas Regulator Inlet, Transfer Line, Cylinder Manifold or Gas Supply Assembly
Customization	Connection length, regulator-side thread and marking can be discussed with LITEN

*Final pressure rating must be confirmed against the complete regulator, cylinder valve, sealing interface, gas service and applicable local requirements.

Key Features

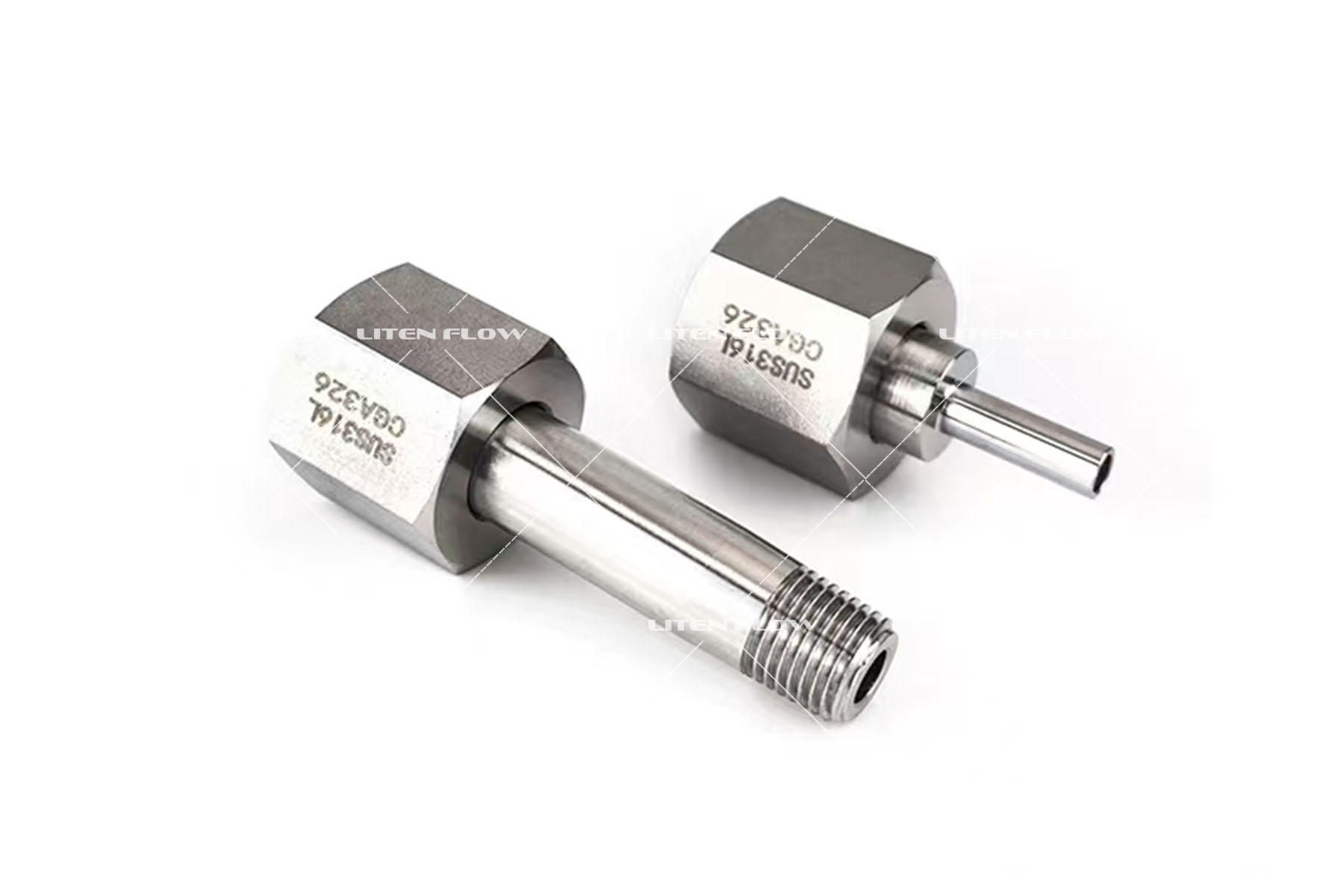

LITEN CGA 326 stainless steel cylinder inlet fitting

316L Stainless Steel Construction

Made from 316L stainless steel for good corrosion resistance, mechanical strength and durability in demanding gas supply applications.

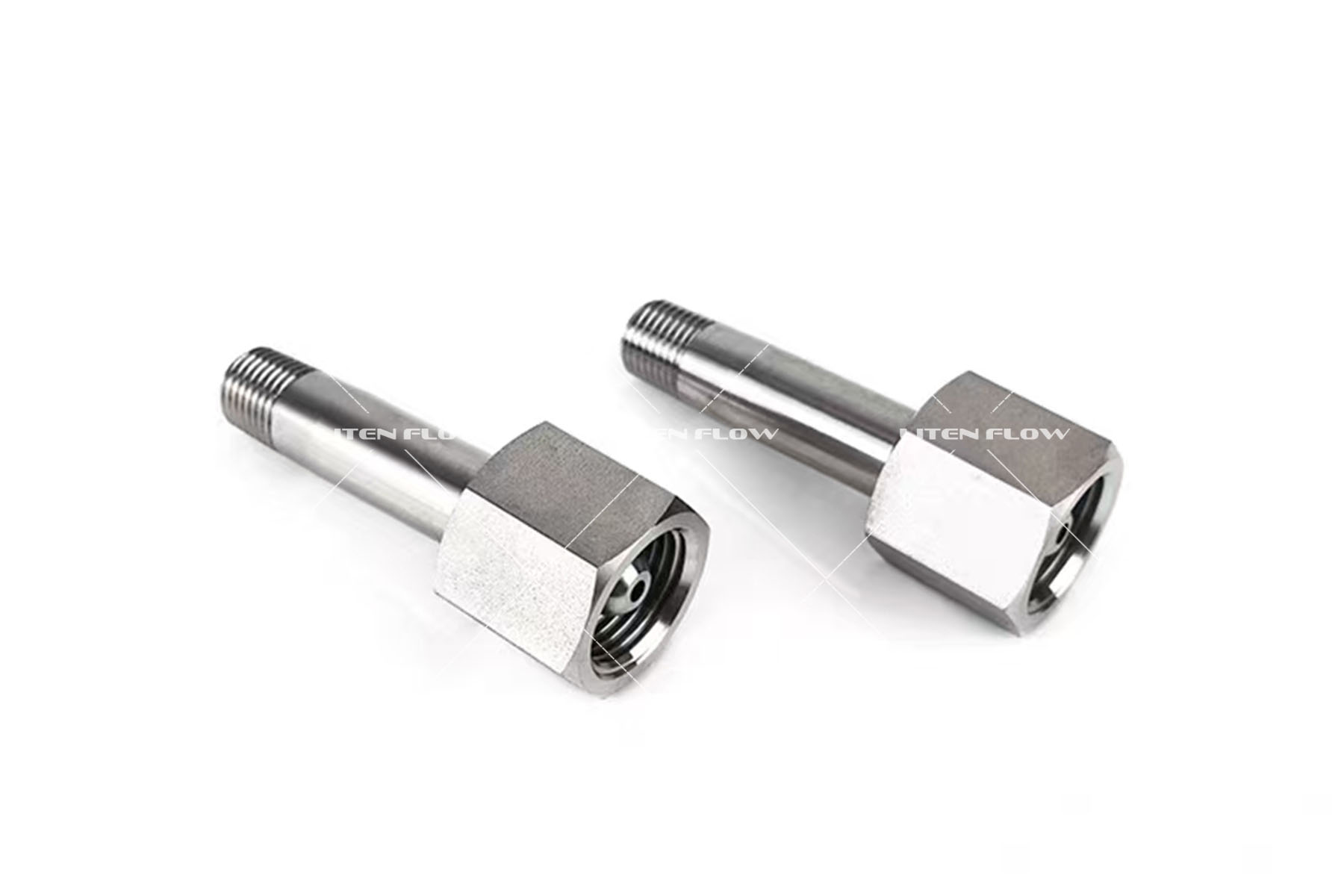

CGA 326 to quarter inch male NPT regulator fitting

Easy Installation and Reusable Connection

Designed for convenient installation and removal. The fitting can be connected to compatible gas cylinders, high-pressure hoses or pressure regulators and reused during system maintenance.

Long pattern CGA 326 regulator inlet nipple

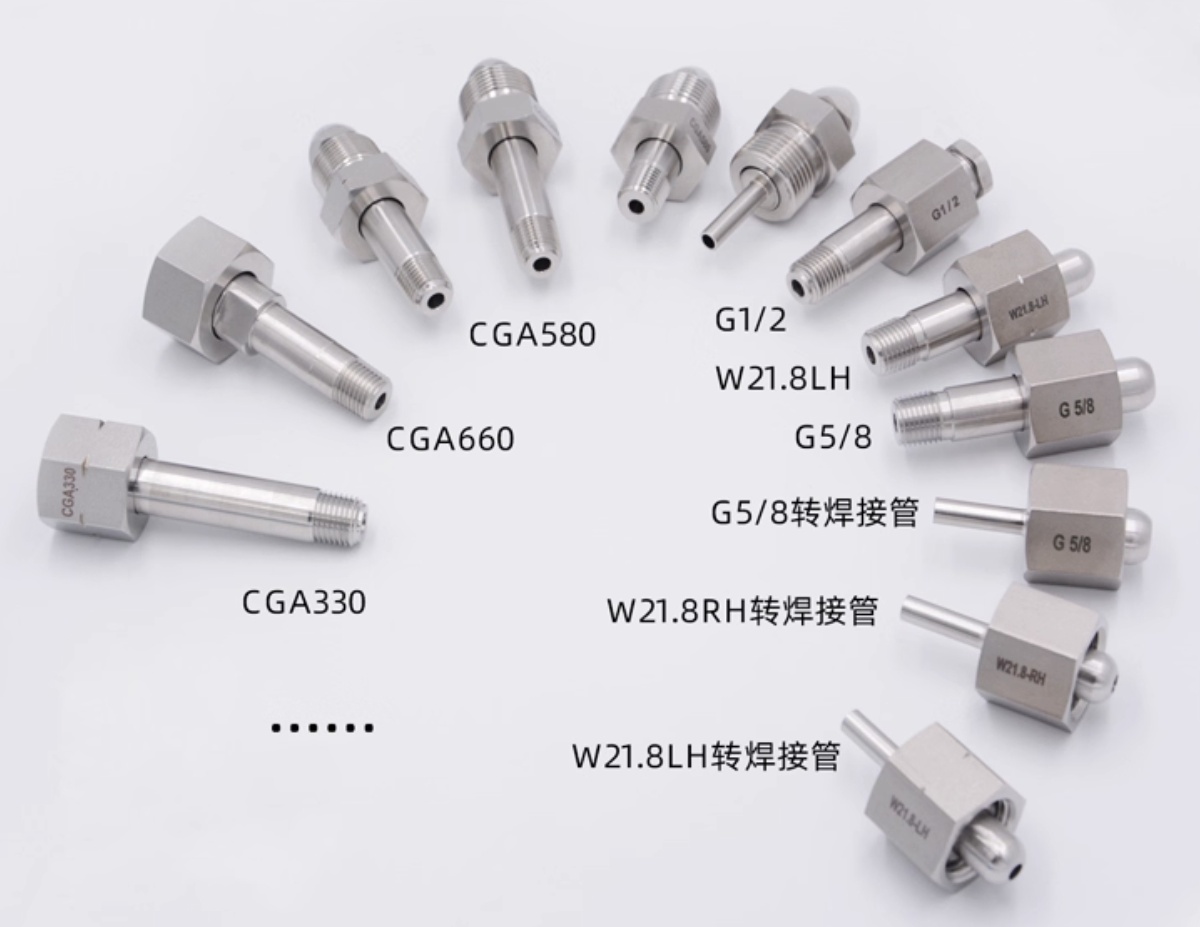

Multiple Connection Options and Customization

Available in multiple CGA, DIN, W21.8, G-thread and welded-tube configurations. Connection size, nipple length, thread type and marking can be customized according to project requirements.

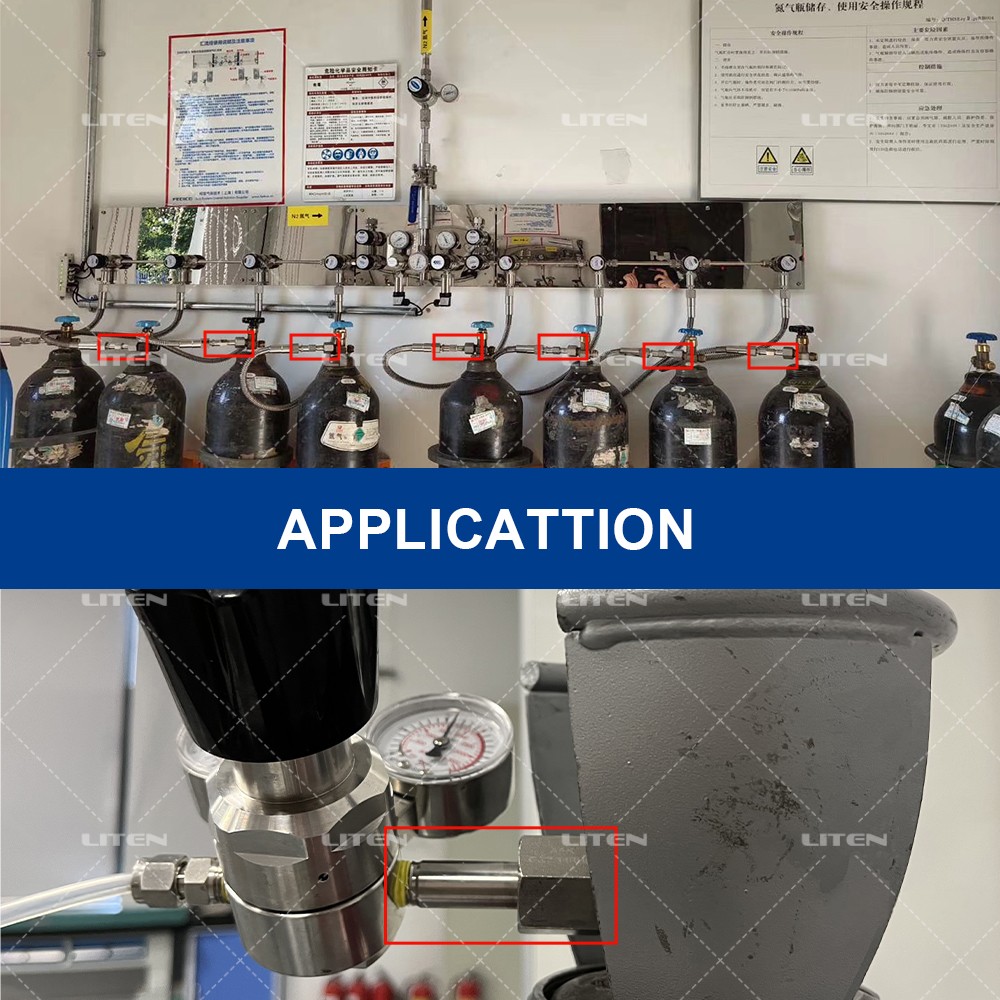

Typical Applications

Nitrous Oxide Cylinder Regulators

Laboratory Gas Supply

Gas Manifold Assemblies

Industrial Gas Equipment

Installation and Safety Notes

Verify that the cylinder valve is marked CGA 326 and that the fitting is approved for the intended gas service.
Do not force mismatched cylinder connections. Stop installation if the threads do not engage correctly.
Do not apply PTFE tape or pipe sealant to the CGA cylinder-sealing surface. The CGA bullet nose seals by metal-to-metal contact.
Thread sealant may only be considered on the 1/4" NPT side when permitted by the regulator manufacturer and gas-service procedure.
Installation, leak testing and commissioning should be completed by trained personnel using procedures suitable for high-pressure oxidizing gas systems.

FAQ

Q1: What gas is the CGA 326 connection used for?

CGA 326 is commonly specified for nitrous oxide cylinder service. Always verify the cylinder valve marking and local requirements before connection.

Q2: Does the CGA side require PTFE tape?

No. The CGA bullet-nose connection uses a metal-to-metal seal and should not use PTFE tape or pipe dope on the cylinder interface.

Q3: What is the regulator-side connection?

This version uses a 1/4" male NPT connection for installation into a compatible regulator or gas-control component.

Q4: Can LITEN supply other CGA inlet connections?

Please send the gas type, CGA number, regulator inlet port, pressure and quantity. LITEN can review suitable cylinder inlet configurations for your project.
